Home Page > Cable Barcode Scanners > Opticon C37 Barcode Scanner

spacer spacer spacer
spacer

Opticon C37 Cabled Barcode Scanner

Opticon C37 Cable Barcode Scanner

The C37 is a durable CCD scanner with a wide optical window. With its aggressive scan engine the C37 operates at a speed of 200 scans per second. Available in black and white, this sleek scanner fits on every desk.

spacer
Send Enquiry C37 Cabled Barcode Scanner - USB Connection $140
spacer
spacer spacer spacer

  • Overview
  • Specifications
  • Downloads
  • Images

FEATURES & BENEFITS

This lightweight and ergonomically shaped device fits comfortably in anyone's hand, making it suitable for all-day scanning applications.

The C37 is available with the most popular interfaces: USB, Keyboard Wedge and RS232. This device is easily programmable to suite your application.









Operating indicators
Visual 1 LED (red/green/orange)
Non-visual Buzzer
Operating keys
Entry options 1 scan key
Communication
RS232 DB9 F connector with external power supply
Keyboard Wedge MiniDIN6 F/M connector
USB Ver. 1.1, HID, USB-A connector
Power
Voltage requirement 5V 10% (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.6V) (RS232)
Barcode scanner Optics
Light source 630 nm red LED
Scan method CCD linear Sensor 2500 pixels
Scan rate 200 scans/sec
Trigger mode Manual, auto-trigger
Reading pitch angle -35 to 0, 0 to +35
Reading skew angle -70 to -20, 20 to +70
Reading tilt angle -20 to 0, 0 to +20
Curvature R>15 mm (EAN8), R>20 mm (EAN13)
Min. resolution at PCS 0.9 0.125 mm / 5 mil
Depth of field 0 - 15 mm / 0 - 0.59 in, at PCS 0.9, Code 39
Supported Symbologies
Barcode (1D) JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey
Postal code Chinese Post, Korean Postal Authority code
Durability
Temperature in operation 0 to 50 C / 32 to 122 F
Temperature in storage -20 to 60 C / -14 to 140 F
Humidity in operation 5 - 95% (non-condensing)
Humidity in storage 5 - 95% (non-condensing)
Ambient light immunity Fluorescent 10,000 lx max, Incandescent 10,000 lx max
Drop test 1.5 m / 5 ft drop onto concrete surface
Vibration test 10 - 100 Hz with 2G for 1 hour
Protection rate IP 42
Physical
Dimensions (w x h x d) 53 x 75 x 150 mm / 2.09 x 2.95 x 5.91 in
Weight body Ca. 90 g / 3.2 oz (excl. cable)
Case ABS, Black or White
Regulatory & Safety
Product compliance CE, FCC, VCCI, RoHS

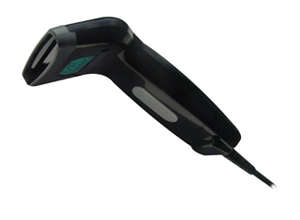

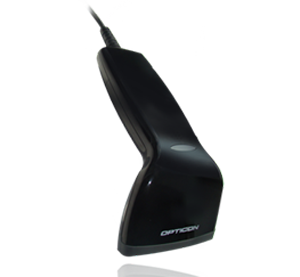

Opticon C37 Cabled Barcode Scanner Opticon C37 Cabled Barcode Scanner
