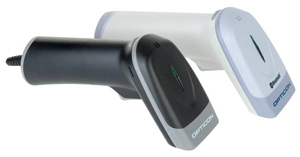

	Opticon OPL-7836 Cable Barcode Scanner The OPL7836 is a compact handheld laser scanner that naturally fits in your hand, enabling comfortable use all day. In order to increase productivity, the OPL7836 can read low-contrast barcodes, as well as high density (condensed) barcodes.

	Opticon OPL-7836 Cable Barcode Scanner - USB Connection	$350

Overview
Specifications
Downloads
Images

FEATURES & BENEFITS

The pistol grip of the OPL7836 is specifically designed to reduce physical stress and enables continuous all-day or repetitive use. The scanner weighs just 100 grams and withstands drops of 1.5 meter onto concrete.

Plug & play
The OPL7836 is available with USB, Keyboard Wedge and RS232 interface, enabling easy integration with any host computer system as a plug and play device.

Operating indicators
Visual	1 large LED (red/green/orange)
Non-visual	Buzzer
Operating keys
Entry options	1 scan key
Communication
RS232	DB9 PTF connector with external power supply
Keyboard Wedge	MiniDIN6 F/M connector
USB	Ver. 1.1, HID/VCP, USB-A connector
Power
Voltage requirement	5V ± 10%
Current consumption	Max. 150mA (typical use)
Barcode scanner Optics
Light source	650 nm visible laser diode
Scan method	Bi-directional scanning
Scan rate	100 scans/sec
Trigger mode	Manual, auto-trigger
Reading pitch angle	-35 to 0º, 0 to +35º
Reading skew angle	-50 to -8°, +8 to +50°
Reading tilt angle	-20° to 0º, 0 to +20º
Curvature	R>15 (EAN8), R>20 (EAN13)
Min. resolution at PCS 0.9	0.127 mm / 5 mil
Min. PCS value	0.45
Depth of field	50 - 500 mm / 1.97 - 19.69 in (1.0 mm / 39 mil), 30 - 300 mm / 1.18 - 11.81 in (0.5 mm / 20 mil), 30 - 240 mm / 1.18 - 9.45 in (0.25 mm / 10 mil), 30 - 130 mm / 1.18 - 5.12 in (0.15 mm / 6 mil), 40 - 100 mm / 1.57 - 3.94 in (0.127 mm / 5 mil), at PCS 0.9 Code 39
Supported Symbologies
Barcode (1D)	JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code	Chinese Post, Korean Postal Authority code
2D code	Composite codes, MicroPDF417, PDF417
Durability
Temperature in operation	-5 to 50 °C / 23 to 122 °F
Temperature in storage	-20 to 60 °C / -4 to 140 °F
Humidity in operation	20 - 85% (non-condensing)
Humidity in storage	10 - 90% (non-condensing)
Ambient light immunity	Fluorescent 4,000 lx max, Direct sun 80,000 lx max, Incandescent 4,000 lx max
Drop test	1.5 m / 5 ft drop onto concrete surface
Vibration test	10 - 100 Hz with 2G for 30 min
Protection rate	IP X2
Physical
Dimensions (w x h x d)	55 x 145 x 113 mm / 2.16 x 5.70 x 4.44 in
Weight body	Ca. 100 g / 3.5 oz (excl. cable)
Case	ABS, Black or White
Regulatory & Safety
Product compliance	CE, FCC, RoHS, JIS-C-6802 Class 1, IEC 60825-1 Class 1, FDA CDRH Class I
