The two cordless M100 and M200 models allow operations anywhere mobility is required at the desk/POS and around the shop floor, as well as in a small warehouse using Narrow Band RF Wireless technology. |
From
$1390 |
| Connection |
Description |
Incl GST |
Buy Now |
| Keyboard Wedge PS2 |
Kit includes M100, OM-Gryphon, PG12, & CAB-321 (for PS/2) |
$ 1,390.00 |
|
| USB |
Kit includes M100, OM-Gryphon, PG12, KACAB-USB004 & CAB-321 |
$ 1,390.00 |
|
The new Gryphon™ reader series has been developed to provide optimised reading performance through excellent ergonomic design, a natural instinctive reading approach and innovative good reading feedback.
The "INSTINCTIVE READING DISTANCE", a concept introduced a few years ago based on in-depth ergonomic studies, represents the natural position of the user while reading a code. The Gryphon™ series takes this concept one step further. The series includes two cordless (M100 and M200) models, allowing operations anywhere mobility is required at the desk/POS and around the shop floor, as well as in a small warehouse.
The Gryphon™ M is 100% compatible with the STAR-System™, the RF narrow band solution for mobile applications that provides the widest family of narrow band devices on the market.
The new "green spot" produced by the Gryphon™ provides "good reading" feedback directly on the code, where the user usually tends to be looking.
Especially optimised optics allow reading of the most popular standard codes with superior depths of field from near contact to over 30 cm. The Gryphon™ series M200 has also been designed to provide decoding of the PDF417, as well as traditional bar codes.
M100 and M200 Gryphon Models Specifications
The same set of features are available in the Gryphon™ M100 and M200, two cordless models which add value wherever mobility is at premium. The ergonomically designed cradle functions both as a radio station and a recharge base.
MODELS AND ACCESSORIES
Models
Gryphon™ M100 Hand-Held cordless reader for linear bar codes (433 MHz)
Gryphon™ M200 Hand-Held cordless reader for linear and stacked codes (433 MHz)
Accessories
Operator's Manual Software manual for Gryphon™ series
SPC-Gryphon™ Desk/Wall holder
STD-Gryphon™ Hands-free stand
PC Gryphon™ Protective case-belt couple
OM-Gryphon™ Base/Charger with multistandard interface (433 MHz)
OM-Gryphon™ Base/Charger with multistandard interface (910 MHz)
C-Gryphon™ Battery charger
STARGATE™ RF433MHz Base Station
PG5 (220 Vac) Power supply unit 5 Vdc
PG220 (220 Vac) Power supply unit 12 Vdc for OM-Gryphon™
*Power supply available on pin 9 or 25 of the connector.
**CAB321 SH1738 (cod. 90A051140) also available for Notebook and IBM SureOne, minidin connector.
M200 Scanner
BATTERY TYPE 2 AA NiMh batteries
RECHARGE TIME 3 hours max.
OPERATING AUTONOMY 25,000 reads - NiMh
OPERATING TEMPERATURE 0 to 40 °C
RADIO FREQUENCY 433.92 MHz (Europe)
BIT RATE 19,200 baud (Europe)
EFFECTIVE RADIATED POWER <10 mW (Europe)
RADIO RANGE 30m open air (Europe)
MAX. NR. COEXISTING SYSTEMS 2048
WEIGHT 280 g (with batteries)
SENSOR CCD solid state (3648 pixels)
MAX. SCAN RATE 270 scans/sec
MAX. RESOLUTION 0.076 mm (3 mils)
PRINT CONTRAST RATIO (min.) pcs=15%
READING ANGLE Skew: ±80°; Pitch: 65°; Tilt: ±35° (EAN13, M=0.8, PCS=0.9)
READING INDICATORS Good Read LED, "green spot" on the code, adjustable tone "beeper"
BAR CODES 2/5 family, Code 39 (plus Code 32, Cip 39), EAN/UPC, ISBN/ISSN, EAN 128, Code 128, ISBT 128, Code 93, Code 11, CODABAR, TELEPEN, PLESSEY, Code MSI, Code Delta IBM (D200/M200 model only) CODABLOCK, Code 16K, PDF 417, Code 49
INTERFACES RS232, pen emulation, Wedge (PC IBM AT/PS2, IBM SureOne, Notebook, IBM terminals: 31xx, 32xx, 34xx, 37xx, 3153, WYSE VDT 60/120/160/185/370, DEC VDT VT200/220/240/300/320/ 340/420, APPLE ADB BUS) ALT mode Wedge option for PC/AT and Notebook, keyboard set-up
ENHANCED FEATURES Puzzle Solver™, data editing and data concatenation
CASE MATERIAL ABS and Polycarbonate, plus co-moulded rubber
AMBIENT LIGHT CONDITIONS Up to 100.000 lux
STORAGE TEMPERATURE -20 to 70 °C (without batteries)
HUMIDITY 90% non condensing
DROP RESISTANCE IEC 68-2-32 Test ED; withstands repeated drops from 1.8 m onto a concrete surface
ENVIRONMENTAL PROTECTION IP30
OM GRYPHON™ CRADLE
POWER SUPPLY 9 to 28 VDC
POWER CONSUMPTION 8W max. (charging)
READING INDICATORS Battery charging (red); Charge completed (green); Power/Data (yellow)
RECHARGE TIME 3 hours max.
RADIO FREQUENCY 433.92 MHz (Europe)
BIT RATE 19,200 baud (Europe)
EFFECTIVE RADIATED POWER <10 mW (Europe); <1mW (USA)
MAX. NR. COEXISTING SYSTEMS 2048
MULTI-POINT CONFIGURATION Up to 16 readers connected to the same cradle
WEIGHT 250 g
DIMENSIONS 208 x 107 x 55.5 mm
CASE MATERIAL ABS

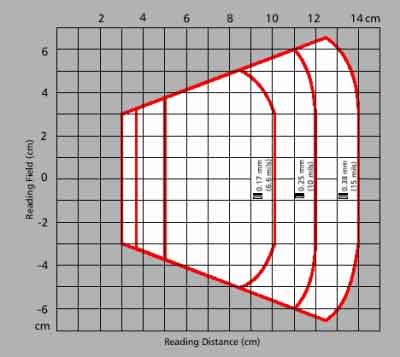

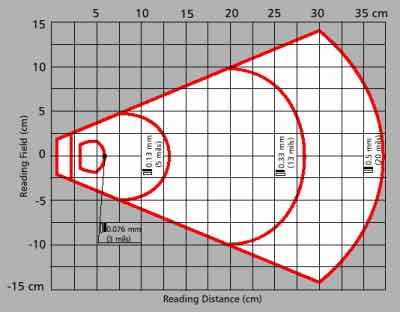

READING DIAGRAMS
Gryphon™ M100
Gryphon™ M200
