	Datalogic Gryphon GD4300 Barcode Scanner The Datalogic Gryphon I GD4100 linear imaging readers provide advanced reading performance and decoding for a wide variety of software applications. The Gryphon I GD4100 barcode scanner has the ability to capture barcodes from near contact to over 1.0 m. A wide scan angle reads very wide codes and advanced reading capabilities allows this barcode scanner to scan hard-to-read, poor or damaged codes.

	Datalogic Gryphon GD-4300 Barcode Scanner - USB Interface	$325

Overview
Specifications
Downloads
Images

GRYPHON GD-4130 Barcode Scanner
The Gryphon line of handheld readers is the premium, feature-rich solution for general purpose applications. All Gryphons offer top reading and decoding speed including unmatched performance on high resolution codes plus Datalogic’s ‘Green Spot’ for good read feedback. Supporting 1D or 2D label decoding, the Gryphon products include corded readers and a specialized model for electrostatic discharge (ESD) protection. Cordless products are available with Datalogic’s STAR Cordless System™ or Bluetooth® wireless technology.

FEATURES

Replaces the Gryphon D130
Extended reading distances over 1 meter
'Green Spot' good read feedback
Multi-interface compatible
IP52 protection class

S p e c i f i c a t i o n s

Decoding Capability
1D / Linear Codes	Autodiscriminates all standard 1D codes including GS1 DataBarTM linear codes
Postal Codes	China Post
Stacked Codes	GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar
Stacked Omnidirectional


Electrical
Current	Operating (Typical): GD4110: 225 mA @ 5 VDC; GD4130: 245 mA @ 5VDC
	Standby/Idle (Typical): 120 mA @ 5 VDC
Input Voltage	GD4110: 4.5 - 14.0 VDC; GD4130: 4.75 - 5.25 VDC


Environmental
Ambient Light	0 - 100,000 lux
Drop Resistance	Withstands repeated drops from 1,8 m / 5,9 ft onto a concrete surface
ESD Protection (Air Discharge )	16 kV
Humidity (Non -Condensing )	0 - 90%
Particulate and Water Sealing	IP52
Temperature	Operating: 0 to 55 °C / 32 to 131 °F
	Storage/Transport: -20 to 70 °C / -4 to 158 °F


Interfaces	RS-232 / IBM 46XX / USB Multi-Interface
	RS-232 / USB / Keyboard Wedge / Wand Multi-Interface


Physical Characteristics
Colors Available	Black; White
Dimensions	18,1 x 7,1 x 10,0 cm / 7,1 x 2,8 x 3,9 in
Weight	169,0 g / 6,0 oz


Reading Performance
Imager Sensor	CCD Solid-State
Light Source	Illumination: Dual LED Array 630 - 670 nm
Print Contrast Ratio (Minimum )	15%
Read Rate (Maximum )	325 reads/sec.
Reading Angle	Pitch: 65°; Roll (Tilt): 35°; Skew (Yaw): 65°
Reading Indicators	Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED
Resolution (Maximum )	0,076 mm / 3 mils

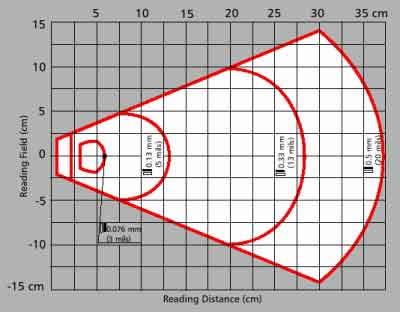

Reading Ranges
Typical Depth of Field	Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.
	5 mils: 6,0 to 18,0 cm / 2,3 to 7,0 in
	7,5 mils: 3,5 to 30,0 cm / 1,4 to 11,7 in
	10 mils: 2,0 to 45,0 cm / 0,8 to 17,7 in
	13 mils: 3,0 to 60,0 cm / 1,2 to 23,4 in
	20 mils: 3,0 to 80,0 cm / 1,2 to 31,2 in


Safety & Regulatory
Agency Approvals	The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance	Complies to China RoHS; Complies to EU RoHS
LED Classification	IEC 60825-1 Class 1 LED Product


Warranty	5-Year Factory Warranty
