MS9535 VoyagerBT® wireless, laser bar code scanner
FEATURES
• Cable-free scanning using Bluetooth® v1.1 technology
• Decodes all standard 1D, RSS-14, RSS Limited and RSS Expanded bar codes
• CodeGate® data transmission technology ideal for menu scanning
• Up to 12,000 scans per charge
• Supports master and client modes
• Recharging base station with in base scanning
• Wall or countertop mounting
• 10 meter (33') working range
• Two way communication - user receives audible and visual confirmation of each scan
• New extended memory model holds up to 2500 bar codes when out of range
| MS9535 VoyagerBT Quick Specs |
|
| Depth of Field: |
0 mm - 203 mm (0” - 8”) for 0.33 mm (13 mil) bar codes |
| Width of Field: |
64 mm (2.5”) @ face; 249 mm (9.8”) @ 203 mm (8”) |
| Scan Speed: |
72 ± 2 scan lines per second |
| Scan Pattern: |
Single scan line |
| Minimum Bar Width: |
0.127 mm (5 mil) |
| Dimensions: |
198 mm (7.8”) H x 40 mm (1.6”) D x Handle Width: 45 mm (1.8”) Head Width: 78 mm (3.1”)
Base: 61 mm (2.4") H x 204 mm (8.0") D x 107 mm (4.2") W |
| System Interfaces: |
PC Keyboard Wedge, RS232, Light Pen Emulation, Stand Alone Keyboard, IBM 468x/469x, USB (low speed and full speed) |
| Light Source: |
Visible Laser Diode 650 nm ± 10 nm |
| Weight: |
Scanner (with battery): 199 g (7.02 oz); Base: 225 g (7.9 oz) |
| Shock: |
Designed to withstand 1.5 m (5') drops |
|
AssetMan
Asset Management Software
Managing the assets within your organization can be a time consuming and error-prone task. Many organizations use traditional methods like paper and pencil or basic spreadsheets to manage their assets. AssetMan changes all of that.
- Do you need to create a database of your assets?
- Do you need to take regular stock takes of your assets?
- Do you want to have all of your asset information at your fingertips?
AssetMan is your answer.
AssetMan Features
- Name data fields to suit your organization
|
- All asset info available on one screen
|
- Powerful Data Collection Features
|
- Powerful Stock Take Capability
|
|
- Simple, Intuitive User Interface
|
|
|
- Auto synchronization with PC database
|
- Full Find and Filter capabilities
|
|
|
Collect Asset Data Easily
AssetMan has a special feature that allows you to speed up entry of new assets. Simply tell AssetMan what fields you will be using. After scanning a field, AssetMan automatically proceeds to the next field.

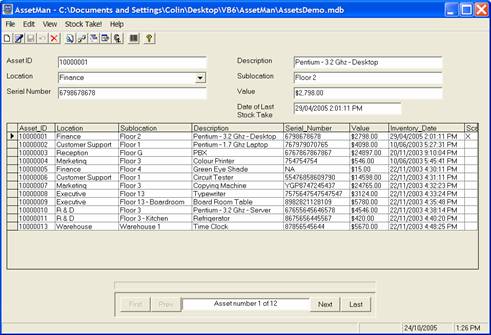

Simple, Intuitive User Interface
AssetMan offers many simple & powerful features. All assets are displayed on one screen in a data grid that can be easily navigated. Click any item within the grid to display the complete information on that asset. Click any column in the grid to automatically sort the information within that column.
Powerful Stock Take Capability
AssetMan lets you stock take asset6s in the location you specify. AssetMan will notify you if an asset is identified in that belongs in another location. At any point in the stock take, you can identify which Assets have been located and which assets have not been located.
Barcode Scanner Enabled
AssetMan has been designed to work seamlessly with barcode scanners. The software has been tested with the majority of barcode scanners on the market today. AssetMan has also been successfully tested with PocketPC PDAs that have built-in barcode scanners.
Full Filtering & Search Capabilities
AssetMan provides you with different ways to view your data. A full search capability allows you to locate data within your database. A filter capability gives you the ability to view of a portion of your database.
Upload / Download Data with AssetMan
AssetMan utilizes the Microsoft Activesync © software for uploading and downloading information to the Access database on your PC. Simply place your PocketPC PDA in its recharging / download cradle and the database on your PC is automatically updated. There are no extra steps.
Based on Microsoft Access
Because AssetMan for PocketPC is base on Microsoft Access, you are not locked in. The Access database is not locked or password protected. Collecting your asset information in an open database allows you to export that information to other software. AssetMan provides you with an open and flexible solution.
Portable AssetMan
AssetMan for PC has a portable solution. AssetMan for PocketPC runs on most PDAs running Microsoft PocketPC 2002 / 2003. Simply stock take your items on the PDA and then synchronise that data back to AssetMan on your PC. It is that easy. The software has been certified for Hewlett Packard IPAQ, Symbol, Casio, ViewSonic, Intermec and other popular PDAs.
Specifications are subject to change without notice. All product and company names are trademarks, service marks or registered trademarks of their respective owners.
