Home Page > Cable Barcode Scanners > CCD-500 Barcode Scanner

spacer spacer spacer
spacer

CCD-500 USB Barcode Scanner

CCD-500 Cable Barcode Scanner

This economical touch scanner gives high performance at a very affordable price that fits the tightest budget.
 Available in USB only.
spacer
Send Enquiry CCD-500 Barcode Scanner (USB) $150
spacer
spacer spacer spacer
  • Overview
  • Specifications
  • Downloads
  • Images

The new CCD-500 is a premium entry level CCD scanner. Offering great value for money, this entry level scanner is ideal for low volume applications. With a range of up to 7cm on retail barcodes and it's slim stylish good looks it stands out against it's competitors.

The key to the CCD-500s outstanding performance is its solid state 300 scans per second scan engine. No other scanner in it's class has a scan engine rated at this speed.

It is small in size and has a protective rubber cover. It can scan barcode from contact to around 8cm.







Interface

USB


Electrical Voltage 5V +/- 5%
Power Consumption 120mA
Environmental
Temperature (operating) 00C~500C
Temperature (storage) -200C~600C
Relative Humidity 20%~85%(non-condensing)

Shock Resistance 100cm drops onto a concrete surface
Physical Weight 88
Housing ABS & Rubber

Optical Optical Sensor Linear CCD
Light Source Red LED
Resolution 0.1mm (4mil) @ PCS0.9
Depth of Field 100mm
Width of Field 50mm from window

Scanning Engine 300 scans/sec+-10%

Ambient Light Rejection 100,000 Lux Max (Sunlight)

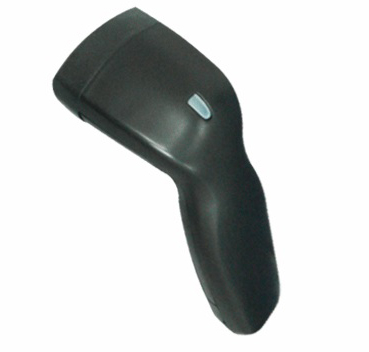

CCD-500 Barcode Scanner Image
